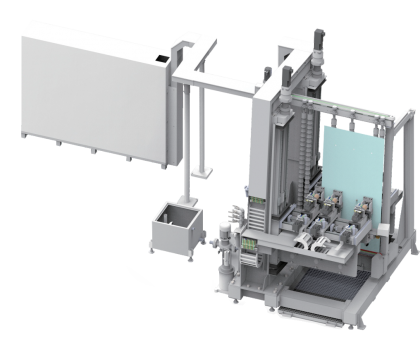

The vertical flat glass drilling machine is designed for precision drilling and can be equipped with 1 to 4 pairs of drilling heads or one pair of revolver heads featuring 4 or 8 drilling spindles. It includes a specialized sensor position system that ensures high drilling accuracy. This machine is ideal for efficiently handling a variety of drilling tasks on flat glass surfaces. Its flexible configuration allows for customization to meet specific production requirements.
SPECIFICATION:
Glass thickhess: 3-25mm
Minimal glass size: 600(W) x 350mm(L)
Maximal glass size: 1200(W) x 2500mm(L)
Hole size: φ 4-65mm
Tolerance of hole size: 0.2mm
Tolerance of hole position : ± 0.3mm
Drilling cycle: 10-30s
